  • ISCAR T490 FLN D2.00-7-.75-08 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 7 Flute

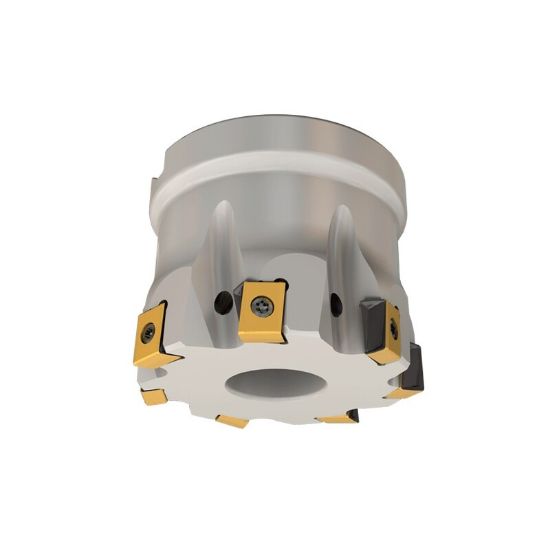

Picture of ISCAR T490 FLN D2.00-7-.75-08 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 7 Flute

ISCAR T490 FLN D2.00-7-.75-08 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 7 Flute

ANSI: T490 FLN D2.00-7-.75-08

ISO: T490 FLN D2.00-7-.75-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104902
Delivery date: 3-5 days
$636.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Insert Size Ic 8
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 7
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000219
