  • ISCAR T490 FLN D2.00-5-.75-R-13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

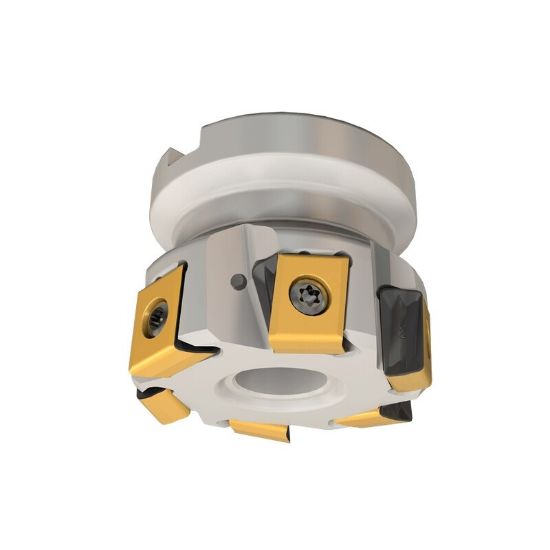

Picture of ISCAR T490 FLN D2.00-5-.75-R-13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ISCAR T490 FLN D2.00-5-.75-R-13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ANSI: T490 FLN D2.00-5-.75-R-13

ISO: T490 FLN D2.00-5-.75-R-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105321
Delivery date: 3-5 days
$624.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Insert Application Roughing, Semi Finishing
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4390045
