  • ISCAR T490 FLN D2.00-5-.75-08 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

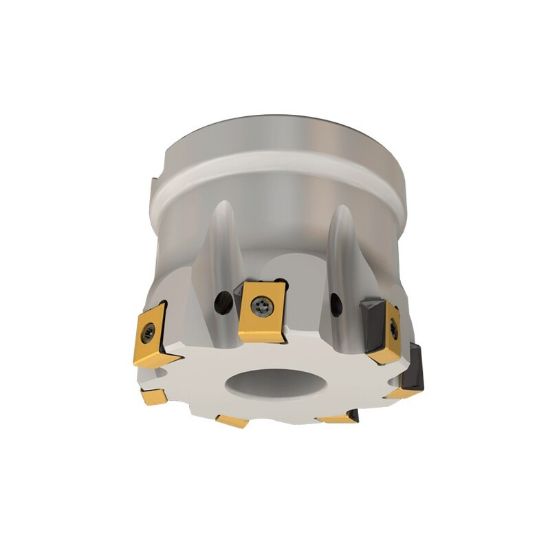

Picture of ISCAR T490 FLN D2.00-5-.75-08 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ISCAR T490 FLN D2.00-5-.75-08 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ANSI: T490 FLN D2.00-5-.75-08

ISO: T490 FLN D2.00-5-.75-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104901
Delivery date: 3-5 days
$594.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 8
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Depth Of Cut Max 0.3150
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style LN
Fasteners & Connectors
Insert Screw 7000219
