  • ISCAR T490 FLN D2.0-04-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

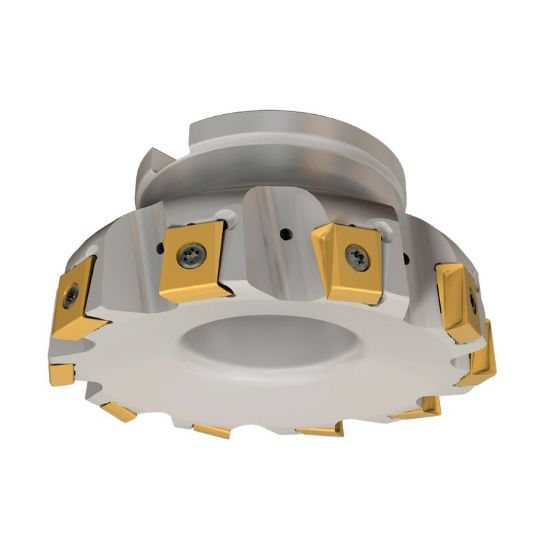

Picture of ISCAR T490 FLN D2.0-04-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ISCAR T490 FLN D2.0-04-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ANSI: T490 FLN D2.0-04-.75-16

ISO: T490 FLN D2.0-04-.75-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105211
Delivery date: 3-5 days
$598.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Insert Size Ic 16
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.6300
Flutes/Inserts 4
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style LN
Fasteners & Connectors
Insert Screw 7000219
