  • ISCAR T490 FLN D2.0-03-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

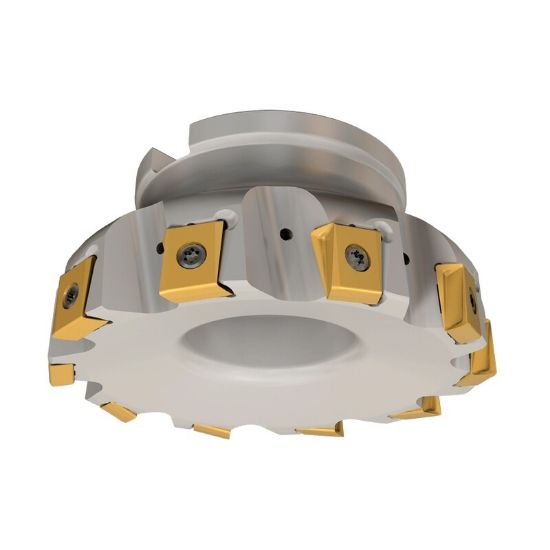

Picture of ISCAR T490 FLN D2.0-03-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ISCAR T490 FLN D2.0-03-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ANSI: T490 FLN D2.0-03-.75-16

ISO: T490 FLN D2.0-03-.75-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105214
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Flutes/Inserts 3
Depth Of Cut Max 0.6300
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000219
