  • ISCAR T490 FLN D1.50-4-.75-R-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 4 Flute

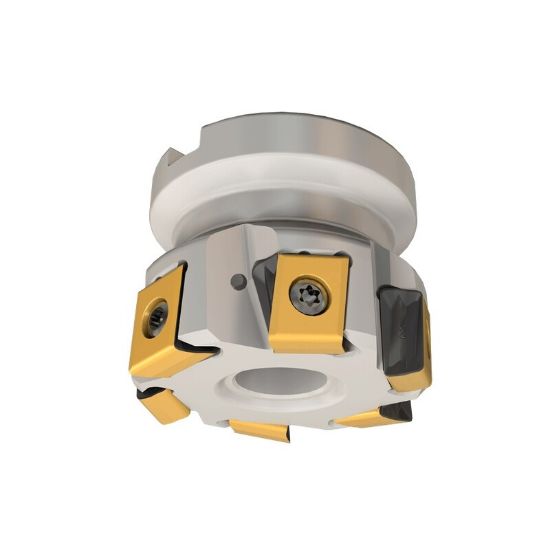

Picture of ISCAR T490 FLN D1.50-4-.75-R-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ISCAR T490 FLN D1.50-4-.75-R-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ANSI: T490 FLN D1.50-4-.75-R-13

ISO: T490 FLN D1.50-4-.75-R-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105320
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Side Milling, Slot Milling, Face Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4390045
