  • ISCAR T490 FLN D1.50-4-.75-08 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 4 Flute

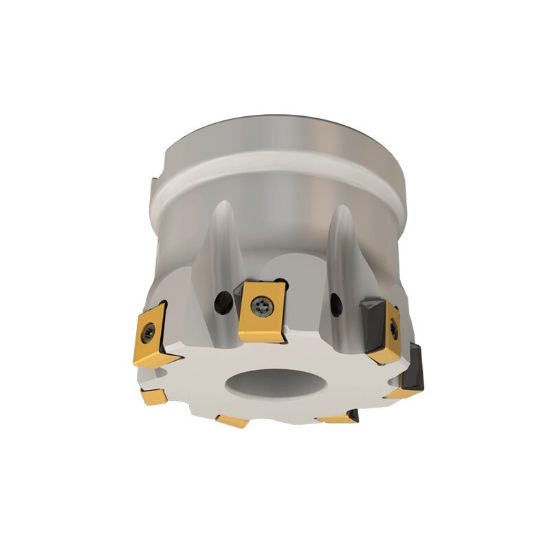

Picture of ISCAR T490 FLN D1.50-4-.75-08 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ISCAR T490 FLN D1.50-4-.75-08 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ANSI: T490 FLN D1.50-4-.75-08

ISO: T490 FLN D1.50-4-.75-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104899
Delivery date: 3-5 days
$526.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Face Milling, Slot Milling, Side Milling
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3150
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Size Ic 8
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000219
