  • ISCAR T490 FLN D1.25-5-.50-08 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.370 OAL 5 Flute

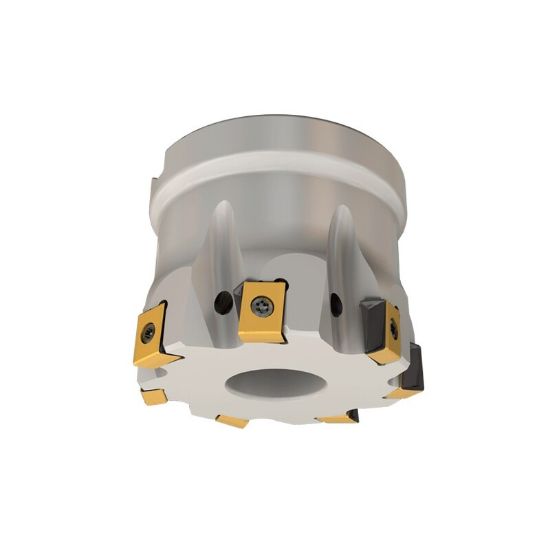

Picture of ISCAR T490 FLN D1.25-5-.50-08 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.370 OAL 5 Flute

ISCAR T490 FLN D1.25-5-.50-08 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.370 OAL 5 Flute

ANSI: T490 FLN D1.25-5-.50-08

ISO: T490 FLN D1.25-5-.50-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104898
Delivery date: 3-5 days
$505.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Shipping State Texas
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Flutes/Inserts 5
Depth Of Cut Max 0.3150
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 1.3700 34.80MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 8
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Fasteners & Connectors
Insert Screw 7000219
