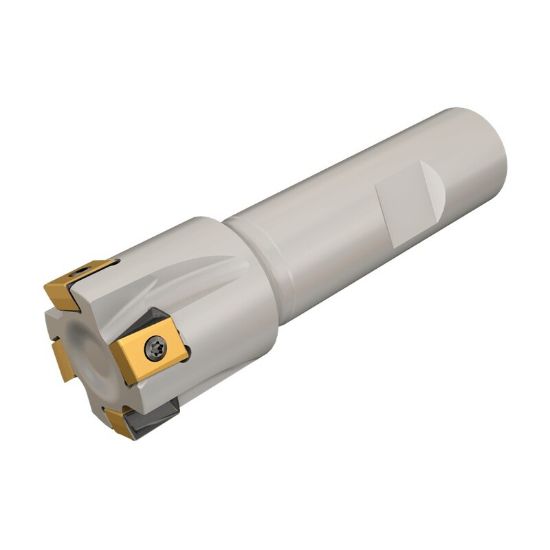

Picture of ISCAR T490 ELND1.50-6-W1.00-08C Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

ISCAR T490 ELND1.50-6-W1.00-08C Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 6 Flute

ANSI: T490 ELND1.50-6-W1.00-08C

ISO: T490 ELND1.50-6-W1.00-08C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105564
Delivery date: 3-5 days
$561.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3150
Tool Material Steel
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 6
Insert Size Ic 8
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4398576
