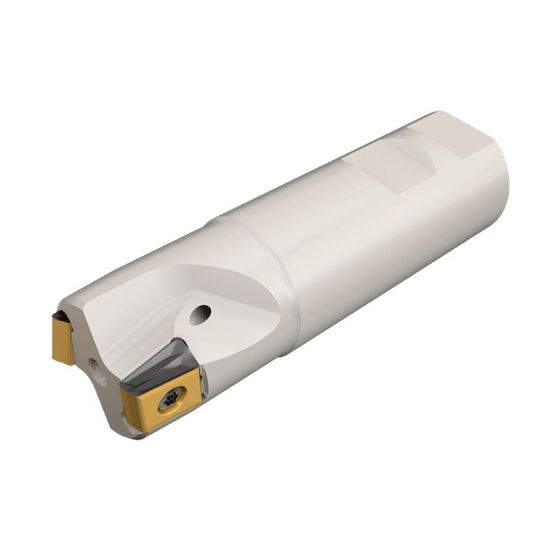

Picture of ISCAR T490 ELND1.50-3-W150-13XL Milling Cutter 90.0° 1.500 Diameter Weldon 1.500 7.750 OAL 3 Flute

ISCAR T490 ELND1.50-3-W150-13XL Milling Cutter 90.0° 1.500 Diameter Weldon 1.500 7.750 OAL 3 Flute

ANSI: T490 ELND1.50-3-W150-13XL

ISO: T490 ELND1.50-3-W150-13XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105304
Delivery date: 3-5 days
$517.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Overall Len 7.7500 196.85MM
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style LN
Max Ramp Angle 2.20°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000000
