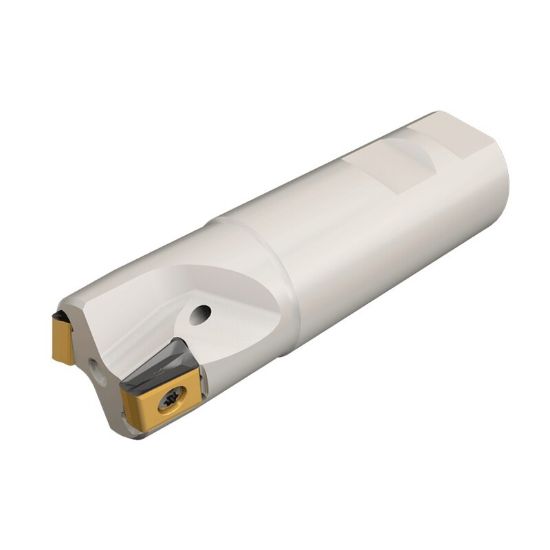

Picture of ISCAR T490 ELND1.25-3-W125-13XL Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 6.250 OAL 3 Flute

ISCAR T490 ELND1.25-3-W125-13XL Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 6.250 OAL 3 Flute

ANSI: T490 ELND1.25-3-W125-13XL

ISO: T490 ELND1.25-3-W125-13XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105300
Delivery date: 3-5 days
$517.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 6.2500 158.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LN
Max Ramp Angle 2.90°
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7005883
