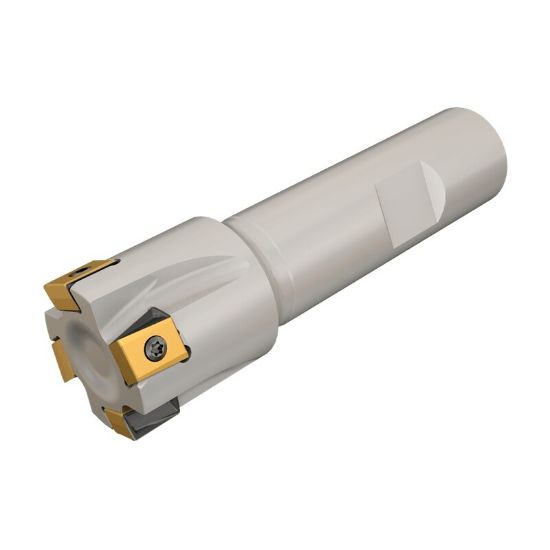

Picture of ISCAR T490 ELN D.75-3-W.75-08C Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 3 Flute

ISCAR T490 ELN D.75-3-W.75-08C Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 3 Flute

ANSI: T490 ELN D.75-3-W.75-08C

ISO: T490 ELN D.75-3-W.75-08C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105502
Delivery date: 3-5 days
$410.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Slot Milling, Face Milling, Side Milling
Shipping State Texas
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Insert Size Ic 8
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Fasteners & Connectors
Insert Screw 4305676
