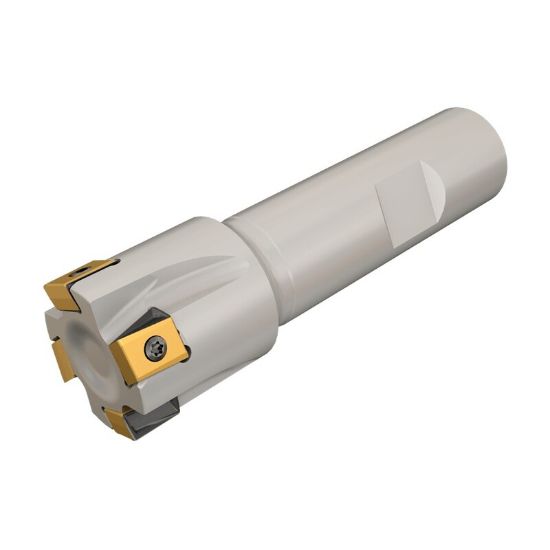

Picture of ISCAR T490 ELN D.75-3-W.75-08 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 3 Flute

ISCAR T490 ELN D.75-3-W.75-08 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 3 Flute

ANSI: T490 ELN D.75-3-W.75-08

ISO: T490 ELN D.75-3-W.75-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105587
Delivery date: 3-5 days
$388.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Insert Size Ic 8
Tool Material Steel
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Insert Style LN
Cool Sply Type External
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Other
Coolant Thru No
Fasteners & Connectors
Insert Screw 4398576
