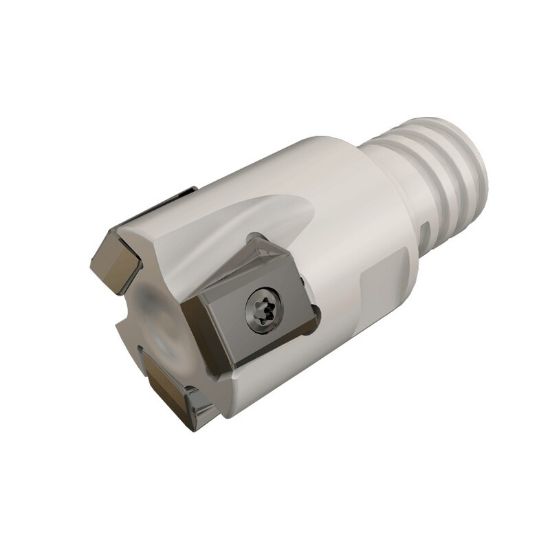

Picture of ISCAR T490 ELN D.75-3-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.370 OAL 3 Flute

ISCAR T490 ELN D.75-3-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.370 OAL 3 Flute

ANSI: T490 ELN D.75-3-MMT12

ISO: T490 ELN D.75-3-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104869
Delivery date: 3-5 days
$406.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size T12
Machine Side Connection Type Screw On
Insert Size Ic 8
Depth Of Cut Max 0.3150
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Overall Len 1.3700 34.80MM
Tool Material Steel
Cut Dia Max 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Style LN
Fasteners & Connectors
Insert Screw 7004916
