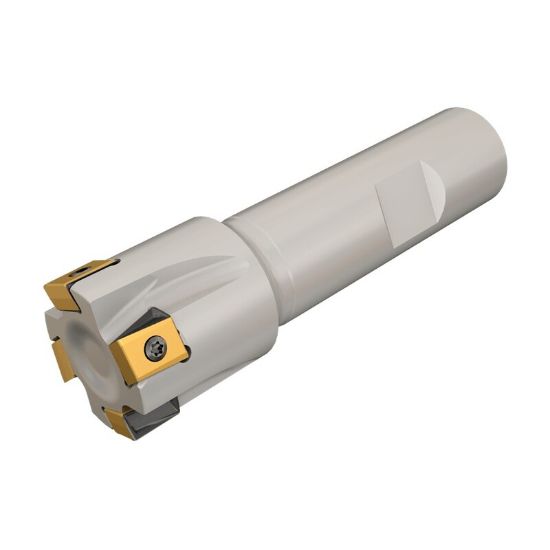

Picture of ISCAR T490 ELN D.75-2-W.75-08C Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

ISCAR T490 ELN D.75-2-W.75-08C Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

ANSI: T490 ELN D.75-2-W.75-08C

ISO: T490 ELN D.75-2-W.75-08C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105586
Delivery date: 3-5 days
$388.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Overall Len 3.3800 85.85MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Insert Size Ic 8
Flutes/Inserts 2
Cut Dia Max 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3150
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style LN
Fasteners & Connectors
Insert Screw 4398576
