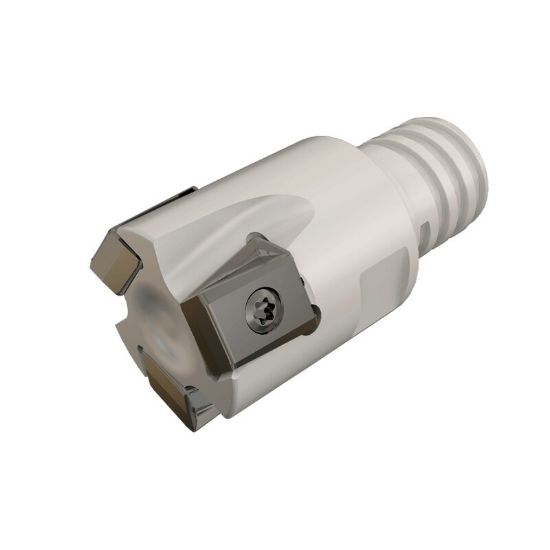

Picture of ISCAR T490 ELN D.75-2-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.390 OAL 2 Flute

ISCAR T490 ELN D.75-2-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.390 OAL 2 Flute

ANSI: T490 ELN D.75-2-MMT12

ISO: T490 ELN D.75-2-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104868
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3150
Cut Dia Min 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size T12
Cutter Dia 0.7500 19.05MM - 3/4
Insert Size Ic 8
Machine Side Connection Type Screw On
Overall Len 1.3900 35.31MM
Cut Dia Max 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Max Ramp Angle 1.80°
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4398586
