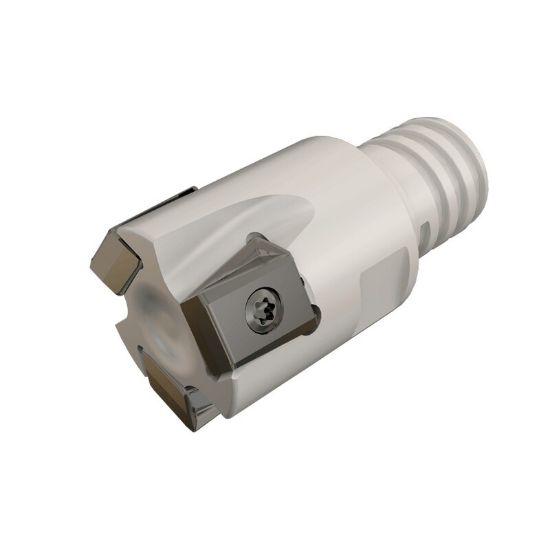

Picture of ISCAR T490 ELN D.62-2-MMT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.260 OAL 2 Flute

ISCAR T490 ELN D.62-2-MMT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.260 OAL 2 Flute

ANSI: T490 ELN D.62-2-MMT10

ISO: T490 ELN D.62-2-MMT10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104867
Delivery date: 3-5 days
$353.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.2760
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Insert Size Ic 8
Machine Side Connection Size T10
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 1.2600 32.00MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Max Ramp Angle 2.00°
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4398586
