  • ISCAR T490 ELN D40-4-L80C6-R-13 Milling Cutter 90.0° 1.575 Diameter PSC "Capto Type" 2.362 4.646 OAL 4 Flute

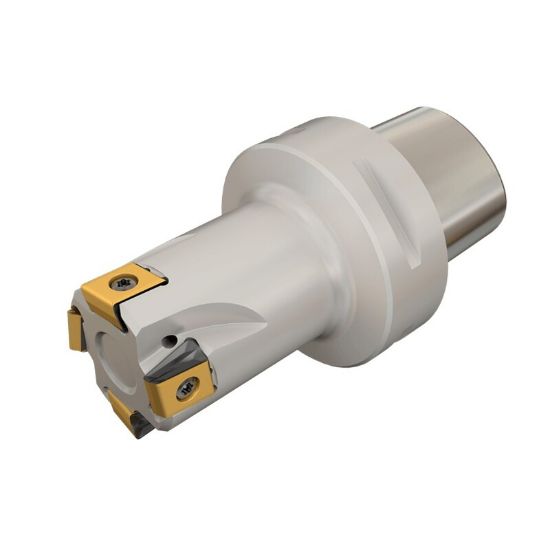

Picture of ISCAR T490 ELN D40-4-L80C6-R-13 Milling Cutter 90.0° 1.575 Diameter PSC "Capto Type" 2.362 4.646 OAL 4 Flute

ISCAR T490 ELN D40-4-L80C6-R-13 Milling Cutter 90.0° 1.575 Diameter PSC "Capto Type" 2.362 4.646 OAL 4 Flute

ANSI: T490 ELN D40-4-L80C6-R-13

ISO: T490 ELN D40-4-L80C6-R-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105779
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 1.5750 40.01MM
Flutes/Inserts 4
Insert Size Ic 13
Machine Side Connection Type PSC "Capt0 Type"
Cut Dia Min 1.5750 40.01MM
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Depth Of Cut Max 0.3940
Overall Len 4.6460 118.01MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Max Ramp Angle 2.00°
Coolant Thru Yes
Insert Style LN
Fasteners & Connectors
Insert Screw 7006264
