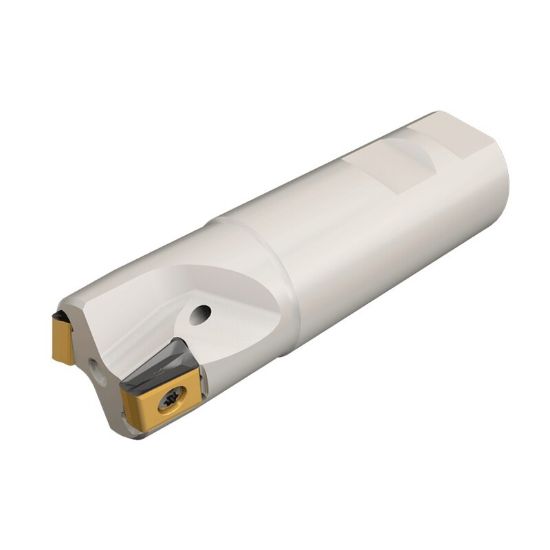

Picture of ISCAR T490 ELN D1.50-4-W1.25-13 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.500 OAL 4 Flute

ISCAR T490 ELN D1.50-4-W1.25-13 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.500 OAL 4 Flute

ANSI: T490 ELN D1.50-4-W1.25-13

ISO: T490 ELN D1.50-4-W1.25-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105303
Delivery date: 3-5 days
$532.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cut Dia Min 1.5000 38.10MM - 1-1/2
Flutes/Inserts 4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Max Ramp Angle 2.20°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style LN
Fasteners & Connectors
Insert Screw 7000000
