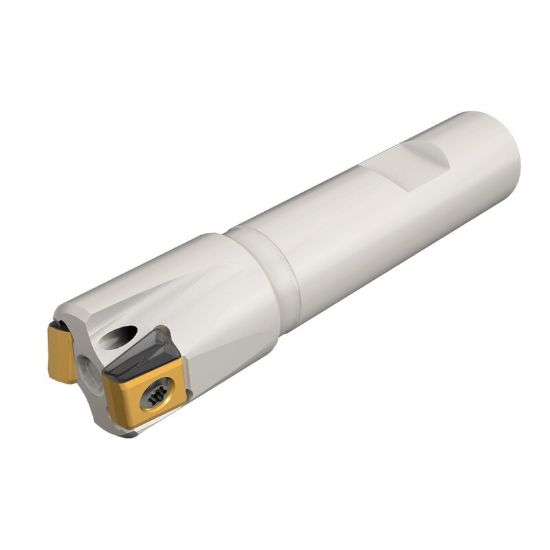

Picture of ISCAR T490 ELN D1.50-4-W1.25-11 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.500 OAL 4 Flute

ISCAR T490 ELN D1.50-4-W1.25-11 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.500 OAL 4 Flute

ANSI: T490 ELN D1.50-4-W1.25-11

ISO: T490 ELN D1.50-4-W1.25-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107156
Delivery date: 3-5 days
$529.92
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Insert/Tool Tool
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Flutes/Inserts 4
Insert Size Ic 11
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Depth Of Cut Max 0.3500
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Max Ramp Angle 1.40°
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000000
