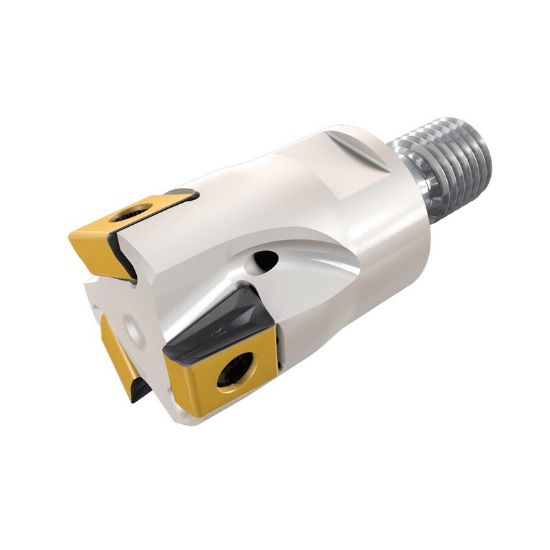

Picture of ISCAR T490 ELN D1.25-5-M16 Milling Cutter 90.0° 1.250 Diameter Screw On M16 2.160 OAL 5 Flute

ISCAR T490 ELN D1.25-5-M16 Milling Cutter 90.0° 1.250 Diameter Screw On M16 2.160 OAL 5 Flute

ANSI: T490 ELN D1.25-5-M16

ISO: T490 ELN D1.25-5-M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104951
Delivery date: 3-5 days
$516.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.3150
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Insert Size Ic 8
Overall Len 2.1600 54.86MM
Machine Side Connection Size M16
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style LN
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002377
