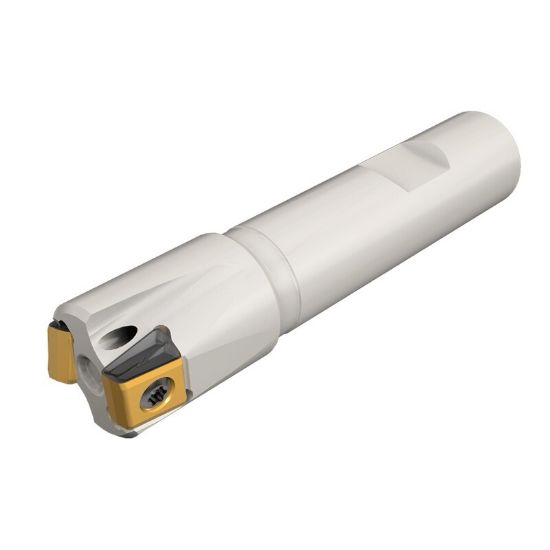

Picture of ISCAR T490 ELN D1.25-4-W1.25-11 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 4 Flute

ISCAR T490 ELN D1.25-4-W1.25-11 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 4 Flute

ANSI: T490 ELN D1.25-4-W1.25-11

ISO: T490 ELN D1.25-4-W1.25-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107154
Delivery date: 3-5 days
$524.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Shipping State Texas
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Max 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.2500 107.95MM
Flutes/Inserts 4
Cutter Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3500
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Insert Size Ic 11
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Max Ramp Angle 1.50°
Fasteners & Connectors
Insert Screw 4308097
