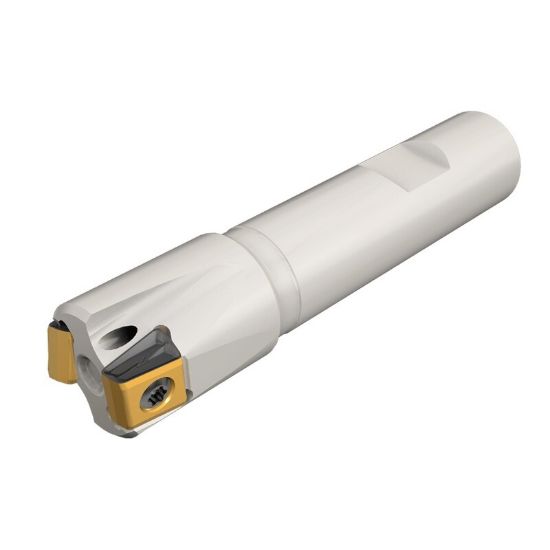

Picture of ISCAR T490 ELN D1.25-3-C125-11B Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 3 Flute

ISCAR T490 ELN D1.25-3-C125-11B Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 3 Flute

ANSI: T490 ELN D1.25-3-C125-11B

ISO: T490 ELN D1.25-3-C125-11B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107151
Delivery date: 3-5 days
$537.60
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Overall Len 8.0000 203.20MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 11
Cut Dia Max 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Depth Of Cut Max 0.3500
Cutting & Machining Properties
Max Ramp Angle 1.50°
Cool Sply Type Through Hole
Insert Style LN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 4308097
