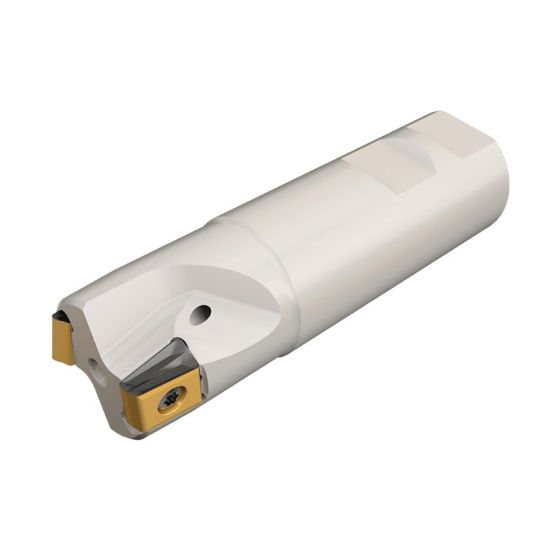

Picture of ISCAR T490 ELN D1.25-2-W1.25-13 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 2 Flute

ISCAR T490 ELN D1.25-2-W1.25-13 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 2 Flute

ANSI: T490 ELN D1.25-2-W1.25-13

ISO: T490 ELN D1.25-2-W1.25-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105295
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Insert Size Ic 13
Depth Of Cut Max 0.4920
Cut Dia Max 1.2500 31.75MM - 1-1/4
Overall Len 4.2500 107.95MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Max Ramp Angle 2.90°
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7005883
