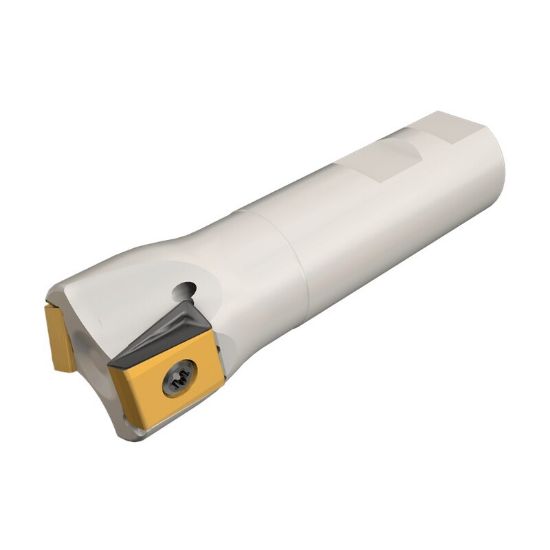

Picture of ISCAR T490 ELN D1.25-2-W1.00-16 Milling Cutter 90.0° 1.250 Diameter Weldon 1.000 4.000 OAL 2 Flute

ISCAR T490 ELN D1.25-2-W1.00-16 Milling Cutter 90.0° 1.250 Diameter Weldon 1.000 4.000 OAL 2 Flute

ANSI: T490 ELN D1.25-2-W1.00-16

ISO: T490 ELN D1.25-2-W1.00-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105482
Delivery date: 3-5 days
$477.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Side Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.6300
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4305676
