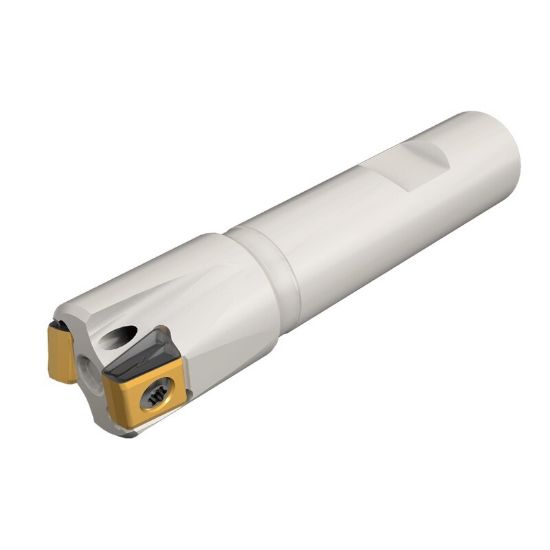

Picture of ISCAR T490 ELN D1.00-3-W1.00-11 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 3 Flute

ISCAR T490 ELN D1.00-3-W1.00-11 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 3 Flute

ANSI: T490 ELN D1.00-3-W1.00-11

ISO: T490 ELN D1.00-3-W1.00-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107147
Delivery date: 3-5 days
$454.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.3500
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Insert Size Ic 11
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Max Ramp Angle 1.70°
Coolant Thru Yes
Insert Style LN
Fasteners & Connectors
Insert Screw 4308097
