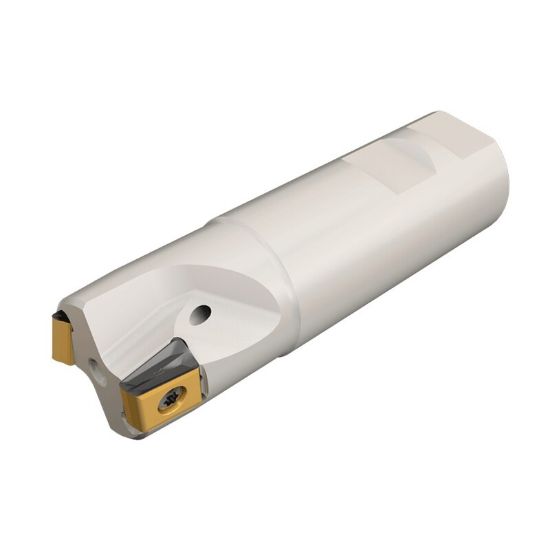

Picture of ISCAR T490 ELN D1.00-2-W1.00-13 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

ISCAR T490 ELN D1.00-2-W1.00-13 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

ANSI: T490 ELN D1.00-2-W1.00-13

ISO: T490 ELN D1.00-2-W1.00-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105293
Delivery date: 3-5 days
$389.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Insert Size Ic 13
Flutes/Inserts 2
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.4920
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005883
