  • ISCAR T490 CAP-D63-36-4-20-13FT Milling Cutter 90.0°, Corn Cob 2.480 Diameter Face Mill 2.480 1.417 OAL 12 Flute

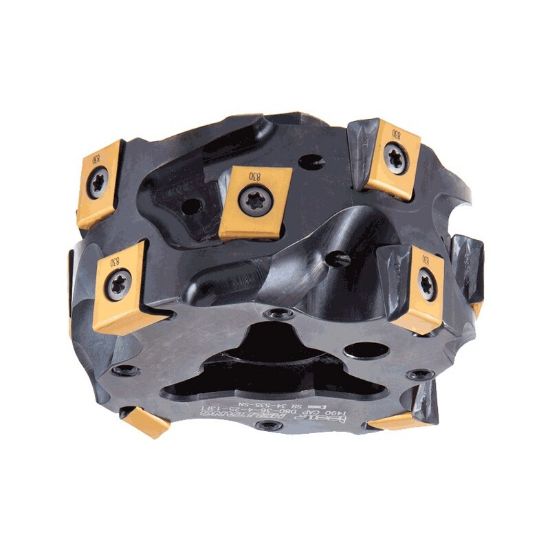

Picture of ISCAR T490 CAP-D63-36-4-20-13FT Milling Cutter 90.0°, Corn Cob 2.480 Diameter Face Mill 2.480 1.417 OAL 12 Flute

ISCAR T490 CAP-D63-36-4-20-13FT Milling Cutter 90.0°, Corn Cob 2.480 Diameter Face Mill 2.480 1.417 OAL 12 Flute

ANSI: T490 CAP-D63-36-4-20-13FT

ISO: T490 CAP-D63-36-4-20-13FT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106579
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Flutes/Inserts 12
Machine Side Connection Size 2.4803 63.00MM
Depth Of Cut Max 1.4170
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Overall Len 1.4170 35.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style LN
Fasteners & Connectors
Insert Screw 7000000
