  • ISCAR T290 FLN D3.00-07-1.0-15 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

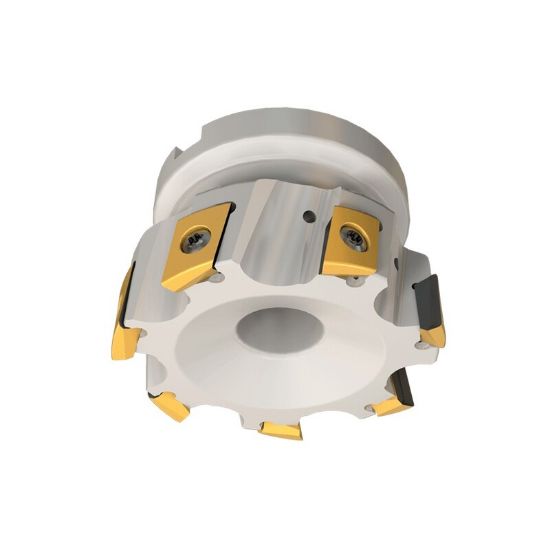

Picture of ISCAR T290 FLN D3.00-07-1.0-15 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ISCAR T290 FLN D3.00-07-1.0-15 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ANSI: T290 FLN D3.00-07-1.0-15

ISO: T290 FLN D3.00-07-1.0-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105352
Delivery date: 3-5 days
$887.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.5510
Flutes/Inserts 7
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 15
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7004916
