  • ISCAR T290 FLN D2.00-07-.75-10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.575 OAL 7 Flute

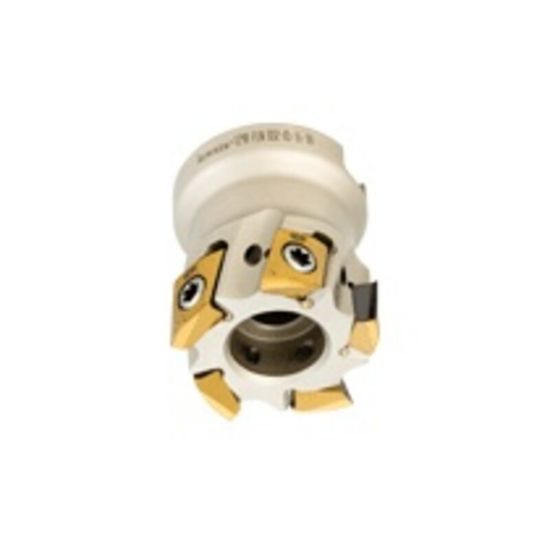

Picture of ISCAR T290 FLN D2.00-07-.75-10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.575 OAL 7 Flute

ISCAR T290 FLN D2.00-07-.75-10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.575 OAL 7 Flute

ANSI: T290 FLN D2.00-07-.75-10

ISO: T290 FLN D2.00-07-.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105984
Delivery date: 3-5 days
$601.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Slot Milling, Face Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.3540
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 7
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7001973
