  • ISCAR T290 FLN D1.25-05-.500-10 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.378 OAL 5 Flute

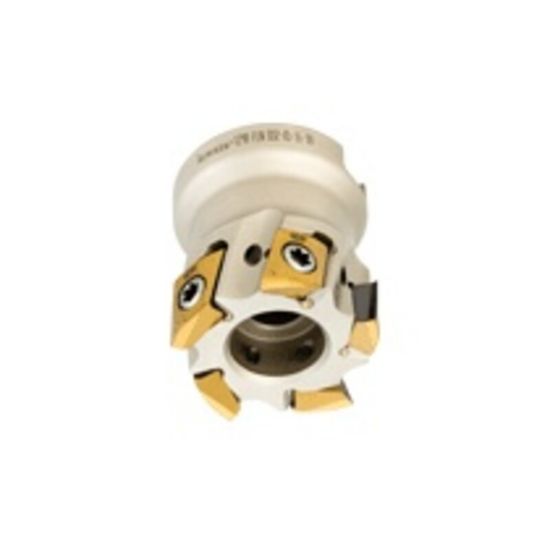

Picture of ISCAR T290 FLN D1.25-05-.500-10 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.378 OAL 5 Flute

ISCAR T290 FLN D1.25-05-.500-10 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.378 OAL 5 Flute

ANSI: T290 FLN D1.25-05-.500-10

ISO: T290 FLN D1.25-05-.500-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105982
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.3780 35.00MM
Flutes/Inserts 5
Depth Of Cut Max 0.3540
Cutter Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Cutting & Machining Properties
Insert Style LN
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7005132
