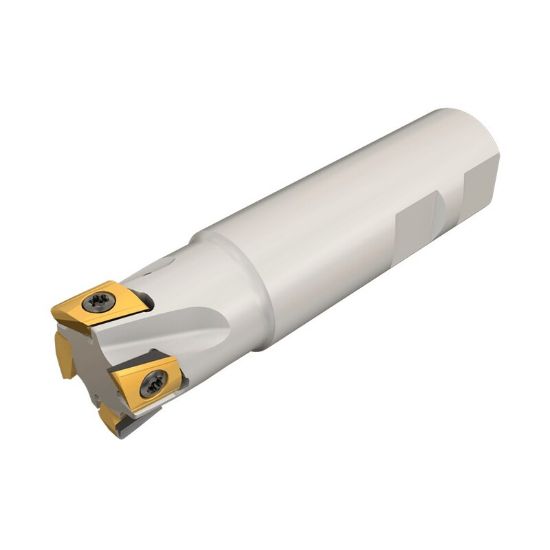

Picture of ISCAR T290 ELN D.75-2W.75-10-XL Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 4.750 OAL 2 Flute

ISCAR T290 ELN D.75-2W.75-10-XL Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 4.750 OAL 2 Flute

ANSI: T290 ELN D.75-2W.75-10-XL

ISO: T290 ELN D.75-2W.75-10-XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105339
Delivery date: 3-5 days
$385.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert Application Roughing, Semi Finishing
Package Size 1
Application Face Milling, Slot Milling, Side Milling
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.7500 120.65MM
Cut Dia Max 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3940
Machine Side Connection Type Weldon
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Fasteners & Connectors
Insert Screw 7005132
