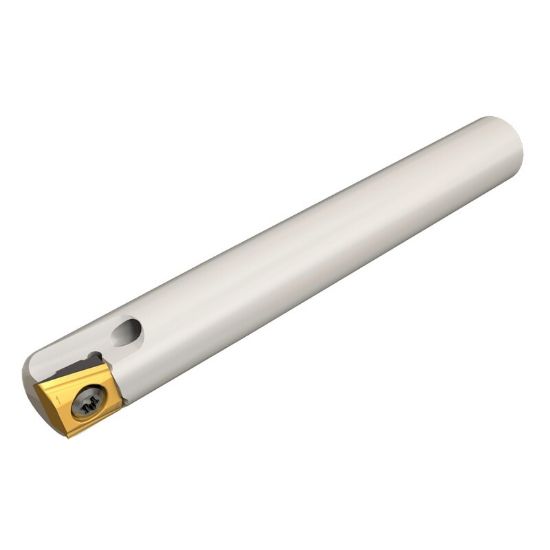

Picture of ISCAR T290 ELN D.62-05-C.62-05 Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.110 OAL 5 Flute

ISCAR T290 ELN D.62-05-C.62-05 Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.110 OAL 5 Flute

ANSI: T290 ELN D.62-05-C.62-05

ISO: T290 ELN D.62-05-C.62-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105152
Delivery date: 3-5 days
$401.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Face Milling, Side Milling, Slot Milling
Made In USA No
Dimensional Specifications
Insert Size Ic 5
Depth Of Cut Max 0.1970
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 3.1100 78.99MM
Cut Dia Min 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002495
