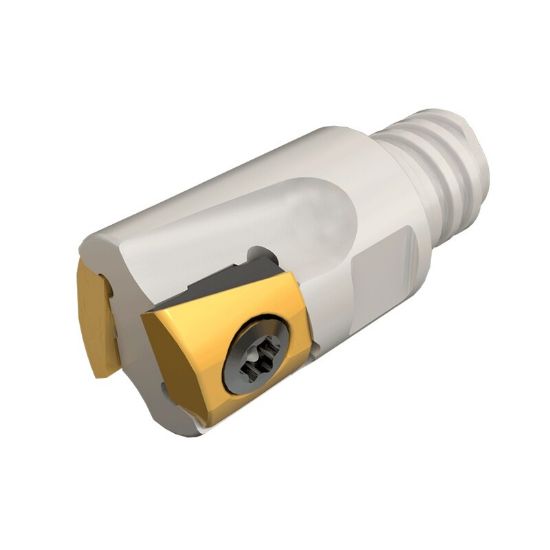

Picture of ISCAR T290 ELN D.62-04-MMT10-05 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.220 OAL 4 Flute

ISCAR T290 ELN D.62-04-MMT10-05 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.220 OAL 4 Flute

ANSI: T290 ELN D.62-04-MMT10-05

ISO: T290 ELN D.62-04-MMT10-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105769
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Flutes/Inserts 4
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Insert Size Ic 5
Depth Of Cut Max 0.1970
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size T10
Overall Len 1.2200 30.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7004916
