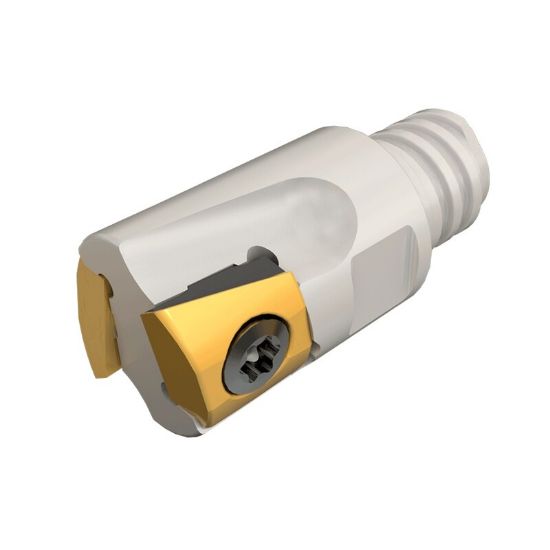

Picture of ISCAR T290 ELN D.50-03-MMT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.940 OAL 3 Flute

ISCAR T290 ELN D.50-03-MMT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.940 OAL 3 Flute

ANSI: T290 ELN D.50-03-MMT08-05

ISO: T290 ELN D.50-03-MMT08-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105178
Delivery date: 3-5 days
$336.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Slot Milling, Face Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Cut Dia Min 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Insert Size Ic 5
Depth Of Cut Max 0.1970
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Overall Len 0.9400 23.88MM
Cut Dia Max 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style LN
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7000219
