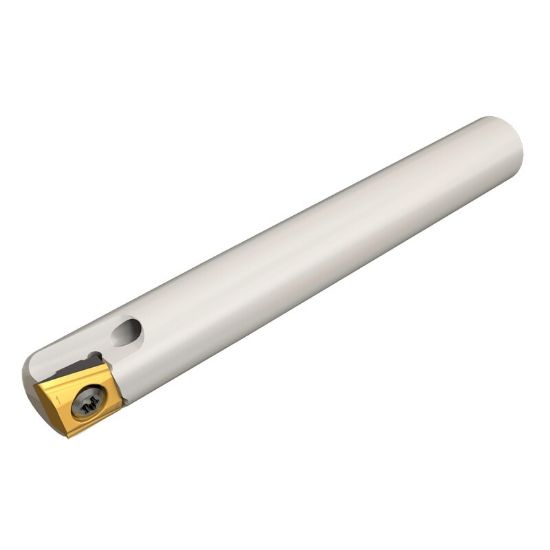

Picture of ISCAR T290 ELN D.50-02-C.50-05 Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.250 OAL 2 Flute

ISCAR T290 ELN D.50-02-C.50-05 Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.250 OAL 2 Flute

ANSI: T290 ELN D.50-02-C.50-05

ISO: T290 ELN D.50-02-C.50-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105237
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Insert Size Ic 5
Depth Of Cut Max 0.2360
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Machine Side Connection Type Cylindrical
Cut Dia Max 0.5000 12.70MM - 1/2
Cut Dia Min 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7066668
