  • ISCAR T290 ELN D.31-01-C.31-05 Milling Cutter 90.0° 0.312 Diameter Cylindrical 0.312 2.500 OAL 1 Flute

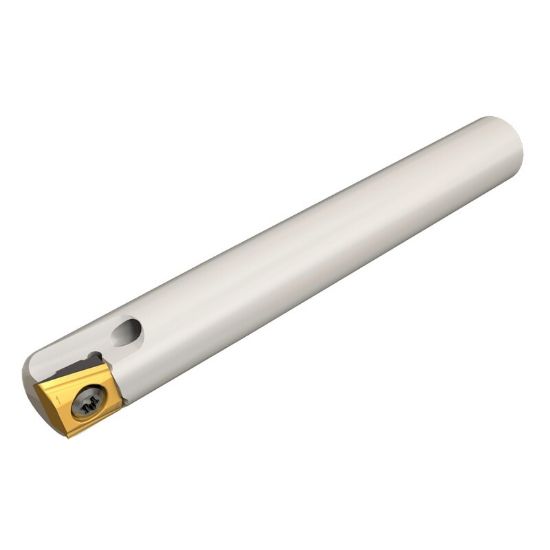

Picture of ISCAR T290 ELN D.31-01-C.31-05 Milling Cutter 90.0° 0.312 Diameter Cylindrical 0.312 2.500 OAL 1 Flute

ISCAR T290 ELN D.31-01-C.31-05 Milling Cutter 90.0° 0.312 Diameter Cylindrical 0.312 2.500 OAL 1 Flute

ANSI: T290 ELN D.31-01-C.31-05

ISO: T290 ELN D.31-01-C.31-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105149
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Overall Len 2.5000 63.50MM
Insert Size Ic 5
Depth Of Cut Max 0.2400
Tool Material Steel
Cut Dia Min 0.3120 7.92MM
Cut Dia Max 0.3120 7.92MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutter Dia 0.3120 7.92MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 1
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Inter/Extern External
Fasteners & Connectors
Insert Screw 7066668
