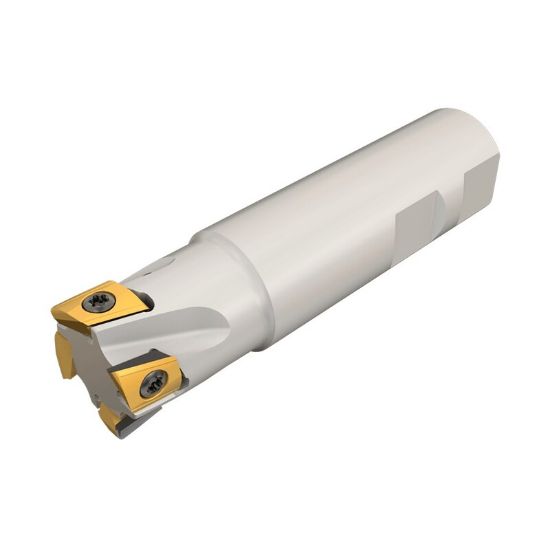

Picture of ISCAR T290 ELN D1.50-06-W125-10 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 6 Flute

ISCAR T290 ELN D1.50-06-W125-10 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 6 Flute

ANSI: T290 ELN D1.50-06-W125-10

ISO: T290 ELN D1.50-06-W125-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105761
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Side Milling, Slot Milling, Face Milling
Shipping State Texas
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Tool Material Steel
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Flutes/Inserts 6
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3940
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005132
