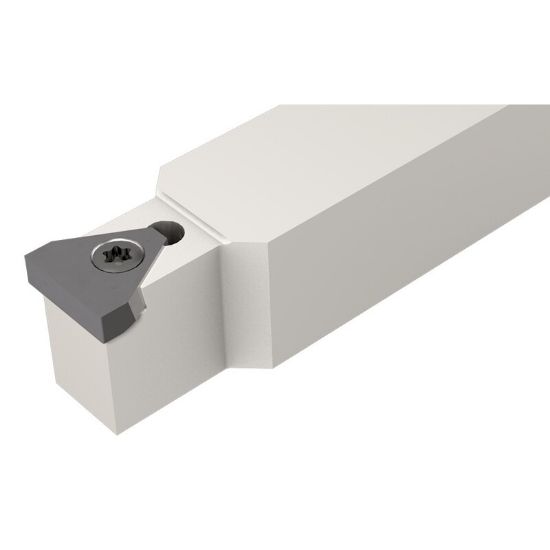

Picture of ISCAR SXCNN 1616 K14-03 Custom Groove Blank,Grooving Stick Tool 0.629 Tool

ISCAR SXCNN 1616 K14-03 Custom Groove Blank,Grooving Stick Tool 0.629 Tool

ANSI: SXCNN 1616 K14-03

ISO: SXCNN 1616 K14-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800963
Delivery date: 3-5 days
$166.08

Important Notes

Toolholder seat needs to be modified according to insert profile to ensure clearance

V-lock external holders for wide form grooving inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Application Swiss, Ext.Grooving
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.6690
Insert Size Ic 14
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.9210 124.99MM
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Dove Tail
Inter/Extern External
