Picture of ISCAR SXCIB 32-30-50  Broaching Cutter

ISCAR SXCIB 32-30-50  Broaching Cutter

ANSI: SXCIB 32-30-50

ISO: SXCIB 32-30-50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861173
Delivery date: 3-5 days
$300.48

Features And Benefits

Broaching holders for lathe and milling machines

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Application BroachIng
Made In USA No
Package Size 1
Insert Type Positive

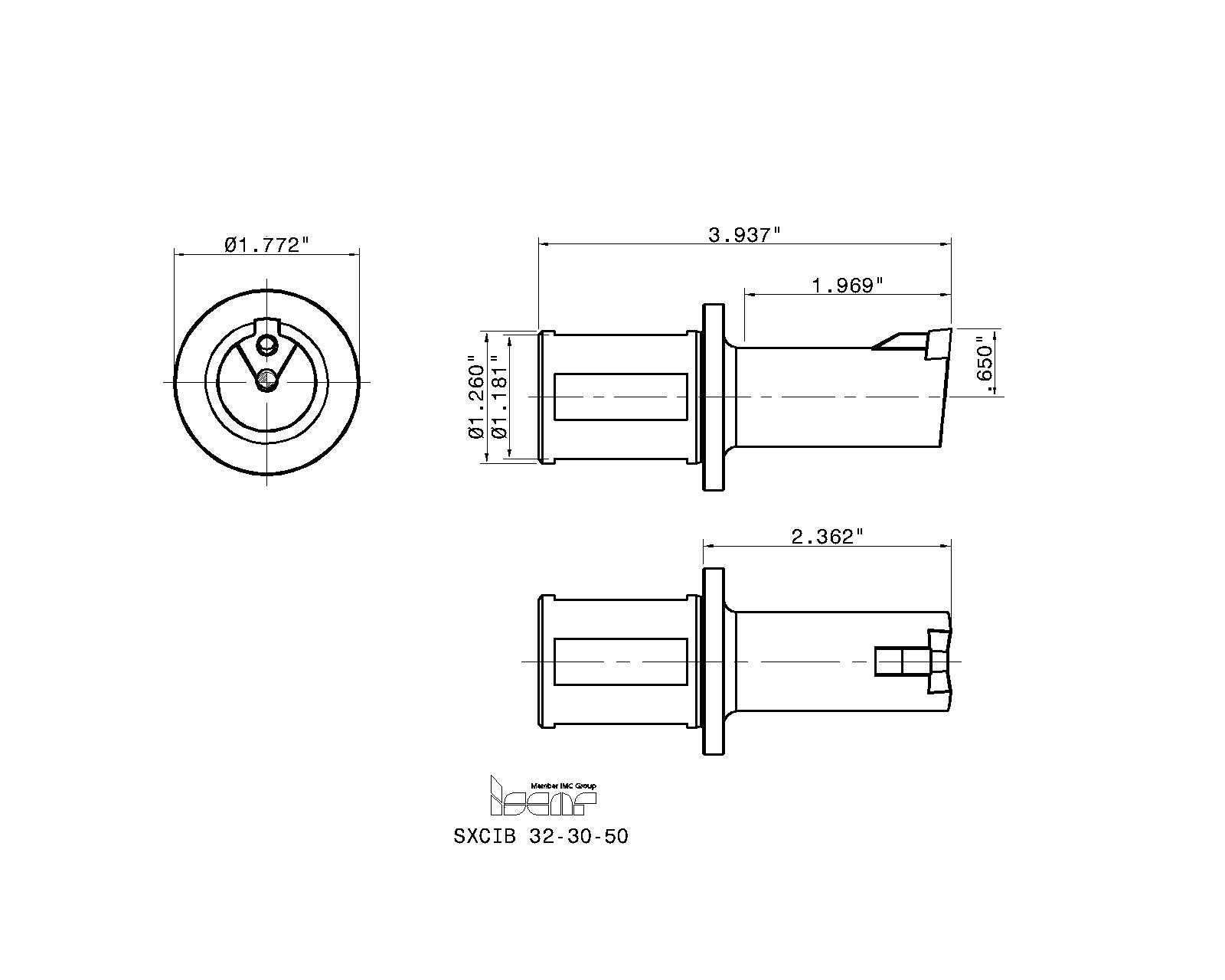

Dimensional Specifications
Tool Material Steel
Overall Len 3.9370 100.00MM
Min Bore 1.1810
Cut Dia Min 1.1810 30.00MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2598 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Neck Length 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Inter/Extern Internal
