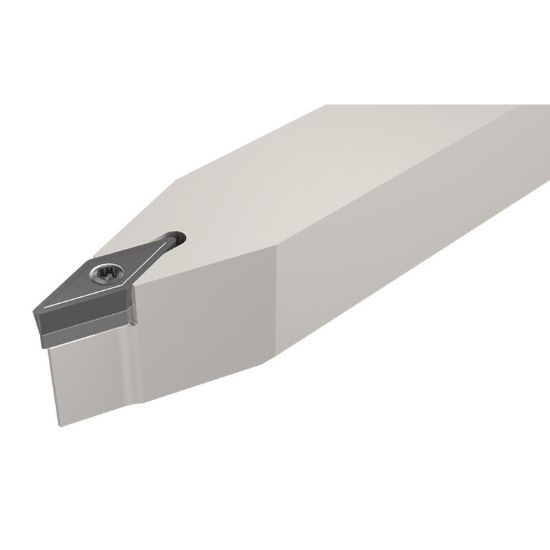

Picture of ISCAR SVVCN 16-3 Turning Stick Tool 35.0° Insert 1.000 Square

ISCAR SVVCN 16-3 Turning Stick Tool 35.0° Insert 1.000 Square

ANSI: SVVCN 16-3

ISO: SVVCN 16-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3601084
Delivery date: 3-5 days
$167.04

Details

72.5° lead angle screw lock tools carrying the 35° diamond inserts with 7° clearance angle.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Lead Angle 72.5°
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Clearance Angle 70.0°
Cutting & Machining Properties
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Neutral
