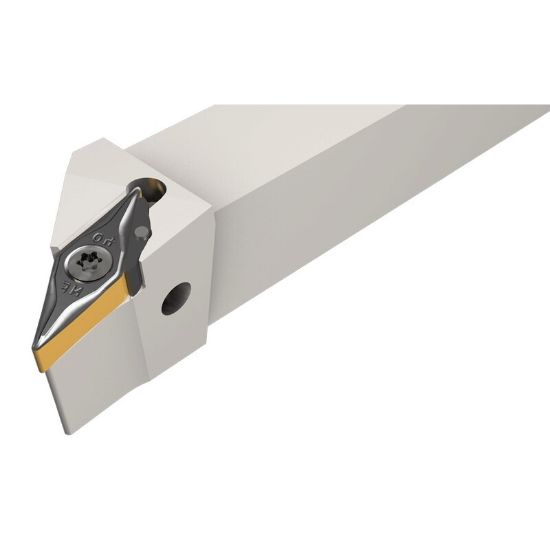

Picture of ISCAR SVJNR 16-2.5F Turning Stick Tool 35.0° Insert 1.000 Square

ISCAR SVJNR 16-2.5F Turning Stick Tool 35.0° Insert 1.000 Square

ANSI: SVJNR 16-2.5F

ISO: SVJNR 16-2.5F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3601924
Delivery date: 3-5 days
$168.96

Important Notes

Repeatability: For VNMG IS ±.0024", for VNGG IS ±.0008"

Details

Screw lock tools with a wedge for high rigidity, carrying the 35° negative inserts for profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Tool Width 1.0000
Insert Size Ic 12 "2.5"
Clearance Angle 50.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VN
