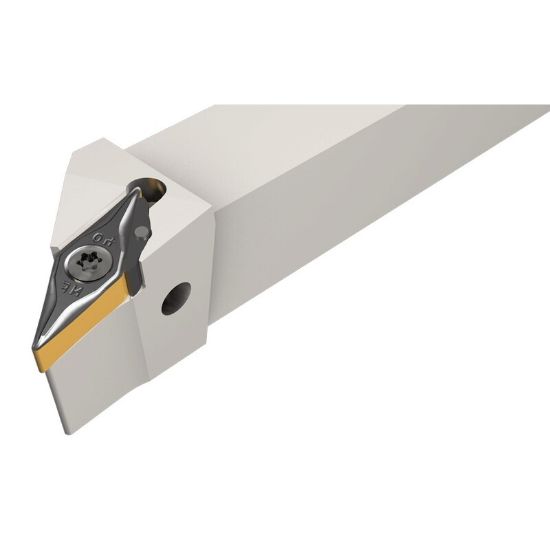

Picture of ISCAR SVJNR 10-2.5F Turning Stick Tool 35.0° Insert 0.625 Square

ISCAR SVJNR 10-2.5F Turning Stick Tool 35.0° Insert 0.625 Square

ANSI: SVJNR 10-2.5F

ISO: SVJNR 10-2.5F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3601920
Delivery date: 3-5 days
$140.16

Important Notes

Repeatability: For VNMG IS ±.0024", for VNGG IS ±.0008"

Details

Screw lock tools with a wedge for high rigidity, carrying the 35° negative inserts for profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 12 "2.5"
Clearance Angle 50.0°
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
