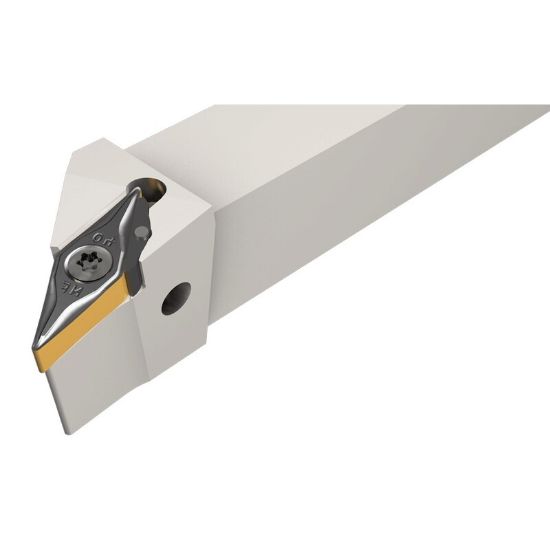

Picture of ISCAR SVJNL 10-2.5F Turning Stick Tool 35.0° Insert 0.625 Square

ISCAR SVJNL 10-2.5F Turning Stick Tool 35.0° Insert 0.625 Square

ANSI: SVJNL 10-2.5F

ISO: SVJNL 10-2.5F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3601921
Delivery date: 3-5 days
$140.16

Important Notes

Repeatability: For VNMG IS ±.0024", for VNGG IS ±.0008"

Details

Screw lock tools with a wedge for high rigidity, carrying the 35° negative inserts for profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Insert Size Ic 12 "2.5"
Clearance Angle 50.0°
Lead Angle 93°
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Style VN
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
