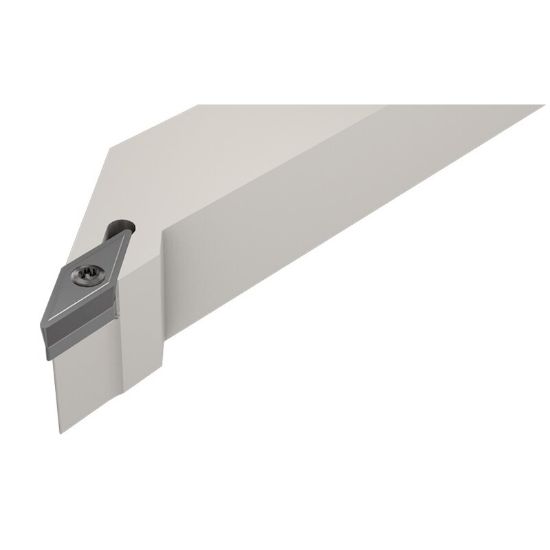

Picture of ISCAR SVJCR 10-3 Turning Stick Tool 35.0° Insert 0.625 Square

ISCAR SVJCR 10-3 Turning Stick Tool 35.0° Insert 0.625 Square

ANSI: SVJCR 10-3

ISO: SVJCR 10-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3601069
Delivery date: 3-5 days
$140.16

Details

93° lead angle screw lock tools carrying the 35° diamond inserts with 7° clearance angle.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Lead Angle 93°
Clearance Angle 50.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VC
