  • ISCAR SOF45 D8.0-10-2.50-R26 Milling Cutter 45.0°, 44.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

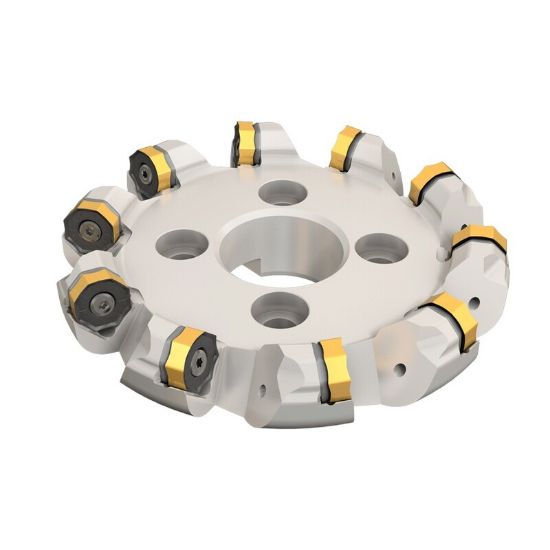

Picture of ISCAR SOF45 D8.0-10-2.50-R26 Milling Cutter 45.0°, 44.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

ISCAR SOF45 D8.0-10-2.50-R26 Milling Cutter 45.0°, 44.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

ANSI: SOF45 D8.0-10-2.50-R26

ISO: SOF45 D8.0-10-2.50-R26

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106622
Delivery date: 3-5 days
$1,881.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 10
Insert Size Ic 10, 26
Cut Dia Min 8.1600 207.26MM
Depth Of Cut Max 0.4330
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.5000 63.50MM
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutter Dia 8.0000 203.20MM
Cut Dia Max 8.9600 227.58MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Insert Style ON,SN
Coolant Thru No
Seat/Nest 4305966
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7006240
Seat Screw 4305967
