  • ISCAR SOF45 D5.0-08-1.50-R18 Milling Cutter 45.0°, 44.0° 5.000 Diameter Face Mill 1.500 2.440 OAL 8 Flute

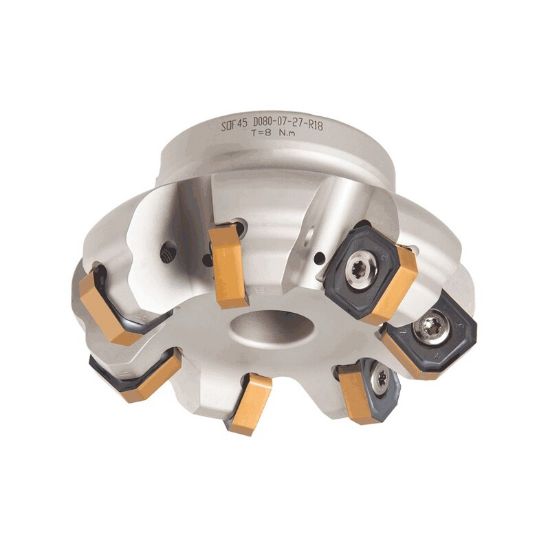

Picture of ISCAR SOF45 D5.0-08-1.50-R18 Milling Cutter 45.0°, 44.0° 5.000 Diameter Face Mill 1.500 2.440 OAL 8 Flute

ISCAR SOF45 D5.0-08-1.50-R18 Milling Cutter 45.0°, 44.0° 5.000 Diameter Face Mill 1.500 2.440 OAL 8 Flute

ANSI: SOF45 D5.0-08-1.50-R18

ISO: SOF45 D5.0-08-1.50-R18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107316
Delivery date: 3-5 days
$1,171.20
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Application Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 07, 18
Cut Dia Min 5.0000 127.00MM
Flutes/Inserts 8
Depth Of Cut Max 0.1970
Tool Material Steel
Cut Dia Max 5.6700 144.02MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.4400 61.98MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style ON,SN
Fasteners & Connectors
Insert Screw 7007136
