  • ISCAR SOF45 D4.0-07-1.50-R18 Milling Cutter 45.0°, 44.0° 4.000 Diameter Face Mill 1.500 2.190 OAL 7 Flute

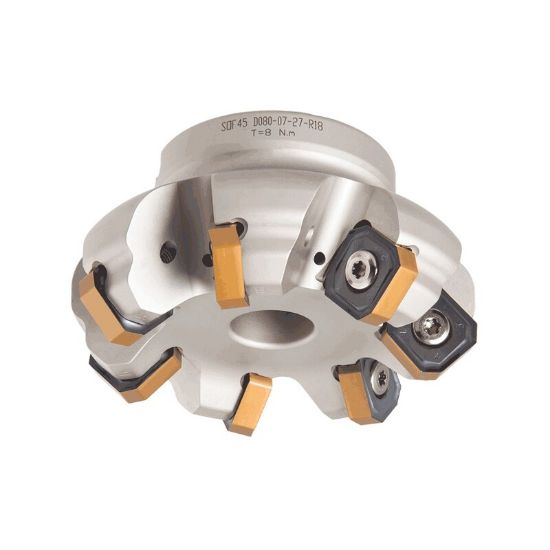

Picture of ISCAR SOF45 D4.0-07-1.50-R18 Milling Cutter 45.0°, 44.0° 4.000 Diameter Face Mill 1.500 2.190 OAL 7 Flute

ISCAR SOF45 D4.0-07-1.50-R18 Milling Cutter 45.0°, 44.0° 4.000 Diameter Face Mill 1.500 2.190 OAL 7 Flute

ANSI: SOF45 D4.0-07-1.50-R18

ISO: SOF45 D4.0-07-1.50-R18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181263
Delivery date: 3-5 days
$1,075.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Face Milling
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Insert Size Ic 18, 07
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 4.0000 101.60MM
Depth Of Cut Max 0.3940
Cut Dia Max 4.6700 118.62MM
Overall Len 2.1900 55.63MM
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Style ON,SN
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002441
