  • ISCAR SOF45 D10.0-12-2.50-R26 Milling Cutter 45.0°, 44.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

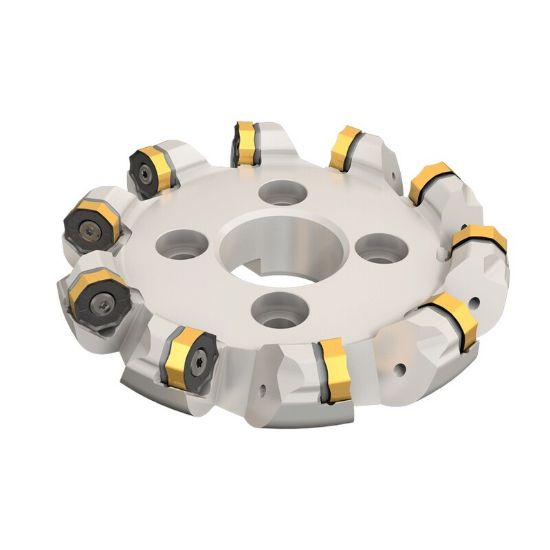

Picture of ISCAR SOF45 D10.0-12-2.50-R26 Milling Cutter 45.0°, 44.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

ISCAR SOF45 D10.0-12-2.50-R26 Milling Cutter 45.0°, 44.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

ANSI: SOF45 D10.0-12-2.50-R26

ISO: SOF45 D10.0-12-2.50-R26

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106623
Delivery date: 3-5 days
$2,419.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Face Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Cutter Dia 10.0000 254.00MM
Overall Len 2.5000 63.50MM
Tool Material Steel
Cut Dia Max 10.9050 276.99MM
Depth Of Cut Max 0.3150
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 10, 26
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Cut Dia Min 10.1600 258.06MM
Cutting & Machining Properties
Coolant Thru No
Seat/Nest 4305966
Insert Shape/Cutter Pocket Shape Multi
Insert Style ON,SN
Cool Sply Type External
Fasteners & Connectors
Seat Screw 4305967
Insert Screw 7002353
