  • ISCAR SOF45 8/16-D5.0-16-1.50R Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 1.480 OAL 16 Flute

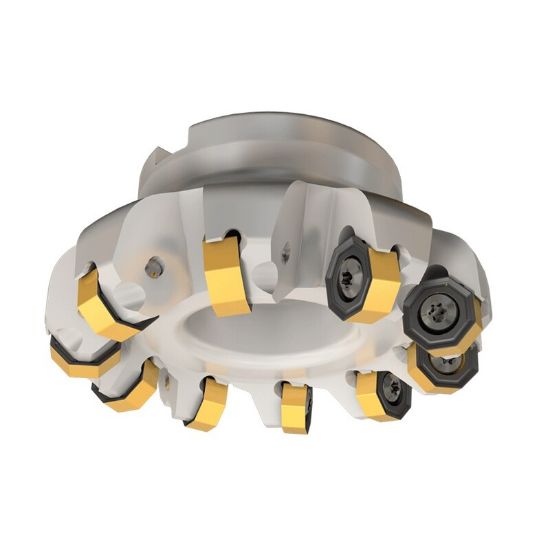

Picture of ISCAR SOF45 8/16-D5.0-16-1.50R Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 1.480 OAL 16 Flute

ISCAR SOF45 8/16-D5.0-16-1.50R Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 1.480 OAL 16 Flute

ANSI: SOF45 8/16-D5.0-16-1.50R

ISO: SOF45 8/16-D5.0-16-1.50R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105314
Delivery date: 3-5 days
$1,555.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Feed Milling, Round Milling, Face Milling
Shipping State Texas
Insert Type Negative
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Tool Material Steel
Overall Len 1.4800 37.59MM
Cut Dia Min 5.0000 127.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 5.4090 137.39MM
Depth Of Cut Max 0.4920
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 16
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Multi
Insert Style SN,ON,RX,RN
Fasteners & Connectors
Insert Screw 4390045
